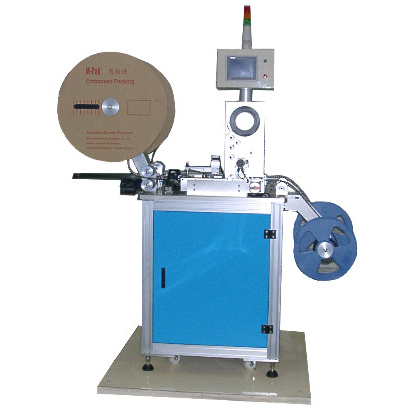

Fully Automatic Tape Reel Machine (Dual Head)

Product ID: 03

Specifications:
  • Bare Chip, Flip Chip, DRAM, LED
  • Wafer Level Package (WLP) Chip
  • SMT Components, Connectors
See more complete detail
Tape Product Size 8, 12, 16, 24, 32, 44, 56mm
UPH (Throughput) >=6000 UPH (units per. hour)
Pick & Place Accuracy ±50u m
Heater DC/AC; 40W x 2(sigle), 40W x 4(Dual Rail)
Facilities 110V AC/1phase/60Hz; Air: 4~6kgf/cm²
Weight Approx. 200kg
Machine Dimensions 1500(W) x 600(D) x 1910(H)mm
Profile
Business Type:OEM Manufacturer ODM Manufacturer Exporter/Agent Distributor
Markets: World Wide
Main Products:Taping & Reel Machine, Taping & Reel Machine-Dual Head, Fiber Assembly Machine, Connecter Production Machine, 40° Simm Auto Loading Machine, Taping & Reel Machine-For Tube, Paper-Wrapping Machine, Automatic Screwing Machine-For Quad Washer, U-Bend Machine, Video Cassette Assembly Machine, Golf Seam Buffing Machine, Pump Assembly Machine
No. of Employee:10
Location:Taiwan
